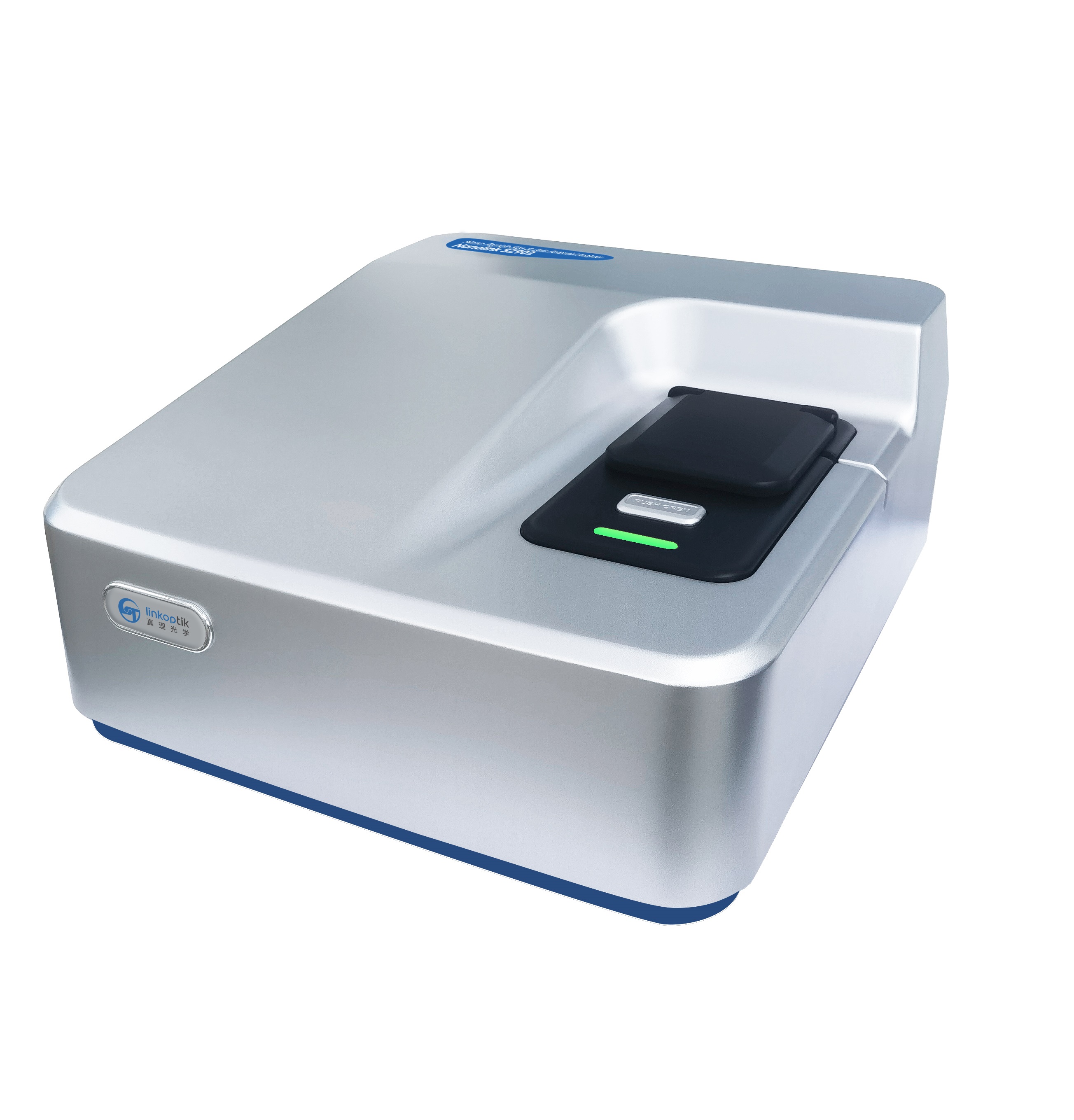

Nanolink S901 series is a new generation of nano particle size analysis system developed by Linkoptik Instruments on the basis of S900 based on years of scientific research. It adopts dynamic light scattering (DLS) technology for nano particle size measurement. It is widely used in organic or inorganic nanoparticles, emulsions, high Particle characterization of molecular polymers, micelles, viral antibodies and proteins, and detection and analysis of sample system stability and particle agglomeration tendency.

Performance and Features:

●  Classic 90° dynamic light scattering technique measures particle size, covering a measurement range of 0.3nm – 15μm

●  The maximum power of the automatic constant temperature technology can reach 50mW, the solid-state laser light source with the wavelength of 638nm, the instrument is ready to use

●  Original integration of laser light source, illumination light and reference light and fiber beam splitting technology

●  Original fiber combining and interference technology of signal light and reference light

●  High sensitivity and very low dark current (20cps) photon detector with integrated fiber optic technology

●  The normal temperature control range can reach 0°C-90°C, the highest optional is 120°C, and the accuracy is ±0.1°C

●  Next-generation high-speed digital correlator with a dynamic range greater than 10¹¹

●  Condensation Control – Dry Air Purge Technology
