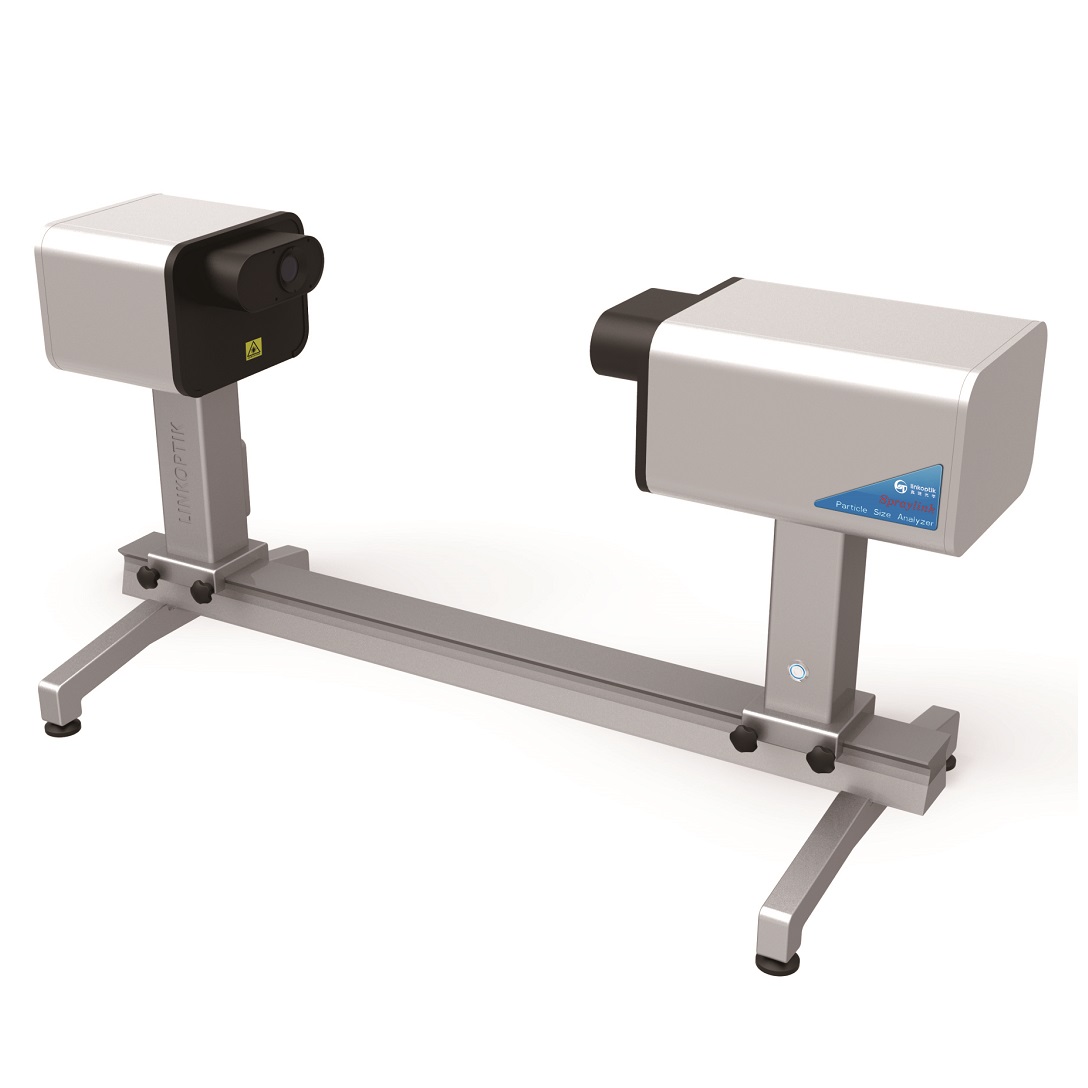

The spray particle size and its control determine the final quality of many products, such as drug delivery during inhalation and nasal spray, fuel spray, aerosol, fuel efficiency evaluation of rocket launch, energy and chemical industry and nozzle research.The high-speed movement of spray particles with wide particle size range and the irregularity of the spray pattern requires high adaptability and high-speed diffraction signal processing capability for the spray particle size analyzer. Spraylink has been specifically designed to meet these challenges, delivering routine, accurate and precise spray particle size measurement in the size range of 0.1μm to 2080μm with no need for change of lens.The Spraylink system integrates an optimized high-sensitivity detection and holographic signal processing system, combined with high-concentration compensation technology, which greatly reduces the effect of multiple diffraction during the measurement of high-concentration spray up to 90% obscuration.

Innovations and Features
>10kHz maximum acquisition rate, perform 10000measurements per second and capture the dynamics
of size change in every 0.1ms interval
>Unique lens configuration and optimized optics enable measurements over large working ranges
>Measurement across a wide range (0.1-2080μm)with no need for optics change
>The newest algorithm ensures accurate particle size distributions can bemeasured at high obscuration
>Rapid auto-alignment
>Lens protection with air purging
>Customizable optical bench arrangement
>Measurement synchronization via flexible triggering options
>Stable construction and full metal cover and optical bench design
>Instantaneous playback of size history and frame-by-frame event analysis
>Analysis of the dynamic changes of particle size distribution with time
>Overlay of results at different time point
